Dystrophin Antibody / DMD

• Catalog Number: orb607120
• Category: Antibodies
• Description: Dystrophin-glycoprotein complex (DGC) connects the F-Actin cytoskeleton on the inner surface of muscle fibers to the surrounding extracellular matrix, through the cell membrane interface. A deficiency in this protein contributes to Duchenne (DMD) and Becker (BMD) muscular dystrophies. The human dystrophin gene measures 2.4 megabases, has more than 80 exons, produces a 14 kb mRNA and contains at least 8 independent tissue-specific promoters and 2 poly A sites. The dystrophin mRNA can undergo differential splicing and produce a range of transcripts that encode a large set of proteins. Dystrophin represents approximately 0.002% of total striated muscle protein and localizes to triadic junctions in skeletal muscle, where it is thought to influence calcium ion homeostasis and force transmission.
• Species/Host: Mouse
• Clonality: Monoclonal
• Clone Number: DMD/3245
• Tested applications: ELISA, IHC-P
• Reactivity: Human
• Isotype: Mouse IgG2a, kappa
• Immunogen: Amino acids 114-263 from the human protein were used as the immunogen for the Dystrophin antibody.
• Dilution range: ELISA (order BSA/sodium azide-free format for coating),Immunohistochemistry (FFPE): 1-2ug/ml for 30 min at RT
• Purity: Protein G affinity chromatography
• Conjugation: Unconjugated
• Formula: 0.2 mg/ml in 1X PBS with 0.1 mg/ml BSA (US sourced) and 0.05% sodium azide
• Hazard Information: This Dystrophin antibody is available for research use only.
• UniProt ID: P11532
• Storage: Store the Dystrophin antibody at 2-8°C (with azide) or aliquot and store at -20°C or colder (without azide).
• Buffer/Preservatives: 0.2 mg/ml in 1X PBS with 0.1 mg/ml rAlbumin (US sourced) and 0.05% sodium azide
• Note: For research use only
• Application notes: Optimal dilution of the Dystrophin antibody should be determined by the researcher.1. The prediluted format is supplied in a dropper bottle and is optimized for use in IHC. After epitope retrieval step (if required), drip mAb solution onto the tissue section and incubate at RT for 30 min.
• Expiration Date: 12 months from date of receipt.

IHC staining of FFPE skeletal muscle with Dystrophin antibody (clone DMD/3245). HIER: boil tissue sections in pH6, 10mM citrate buffer, for 10-20 min and allow to cool before testing.

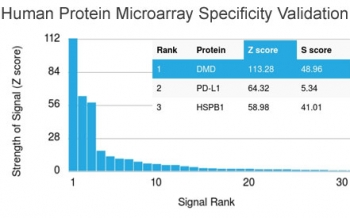

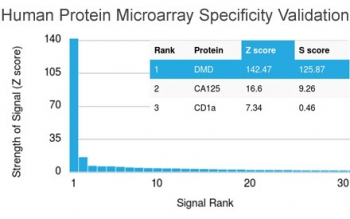

Analysis of HuProt (TM) microarray containing more than 19000 full-length human proteins using Dystrophin antibody (clone DMD/3245). These results demonstrate the foremost specificity of the DMD/3245 mAb. Z- and S- score: The Z-score represents the strength of a signal that an antibody (in combination with a fluorescently-tagged anti-IgG secondary Ab) produces when binding to a particular protein on the HuProt (TM) array. Z-scores are described in units of standard deviations (SD's) above the mean value of all signals generated on that array. If the targets on the HuProt (TM) are arranged in descending order of the Z-score, the S-score is the difference (also in units of SD's) between the Z-scores. The S-score therefore represents the relative target specificity of an Ab to its intended target.

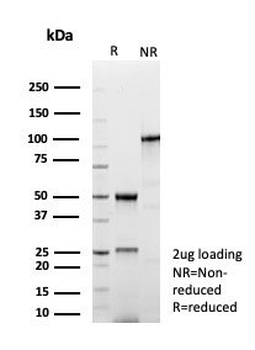

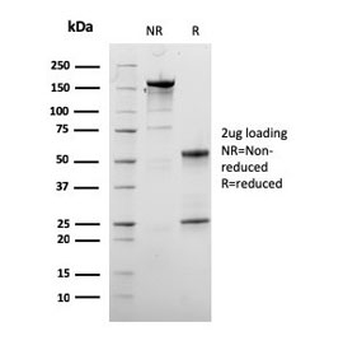

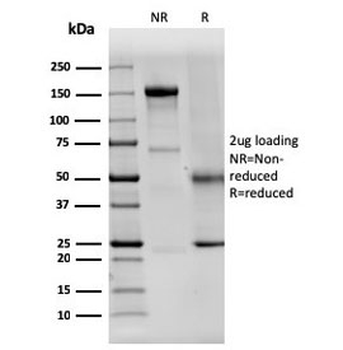

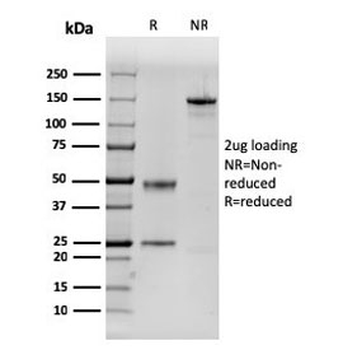

SDS-PAGE analysis of purified, BSA-free Dystrophin antibody (clone DMD/3245) as confirmation of integrity and purity.
